Raw materials

PVC, UPVC

Surface materials

ASA

Total Width

885mm

Efficient Width

830mm

Length

Max length in 40ft container 11.8m

Max length in 20ft container 5.8m

Thickness

10mm

Quantity

4900sqm / 40HQ

Purlin distance

Max 1.2m

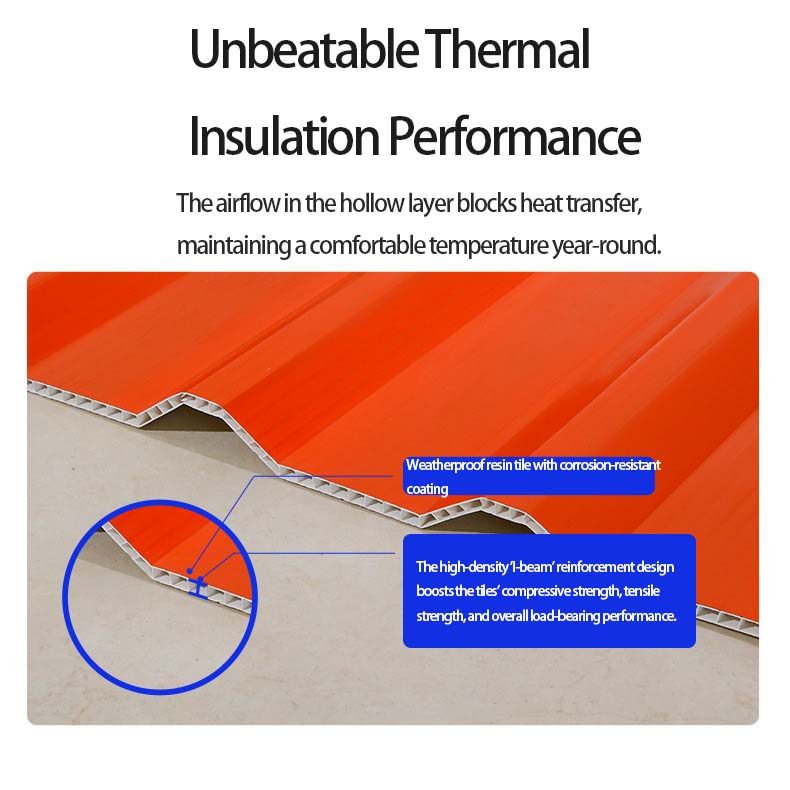

Insulation effect

reduce 28% temperature

Shape

trapezoidal wave

Color

white, blue, green, gray,brick red, yellow, etc.

Color lasting

30 years with ASA

Layers

3-4 layers

Features

1.Excellent heat resistant and Anti-corrosive

2. The variety of colors and patterns
3. High intensity, resist erosion, anti aging
4. Fireproof, waterproof, environmental friendly
5. Easy setting and cleaning

Application

Farm house, warehouse, chemical factory, wall cladding, and some other projects, etc.

 Properties

Metal Roofing

Asbestos Roofing

Ceramic Tile Roofing

UPVC roof sheet

Stability in corrosive environment

Not stable in corrosive environment

Not stable in corrosive environment

Highly stable in corrosive environment

Highly stable in corrosive environment

Flexural Strength

15MPa

16MPa

10MPa

45-55MPa

Combustibility

Not combustible

Not combustible, but has micro explosions while burning

Not combustible

Not combustible

Thermal Conductivity

15 W/m.°C

0.46 W/m.°C

0.27 W/m.°C

0.104 W/m.°C

Weight of 100m2

420 kgs

1340 kgs

5500 kgs

380 kgs

Sound Insulation

No

No

Yes

Yes

Eco-friendliness

Ecologically clean

Contains carcinogenic asbestos

Ecologically clean

Ecologically clean
